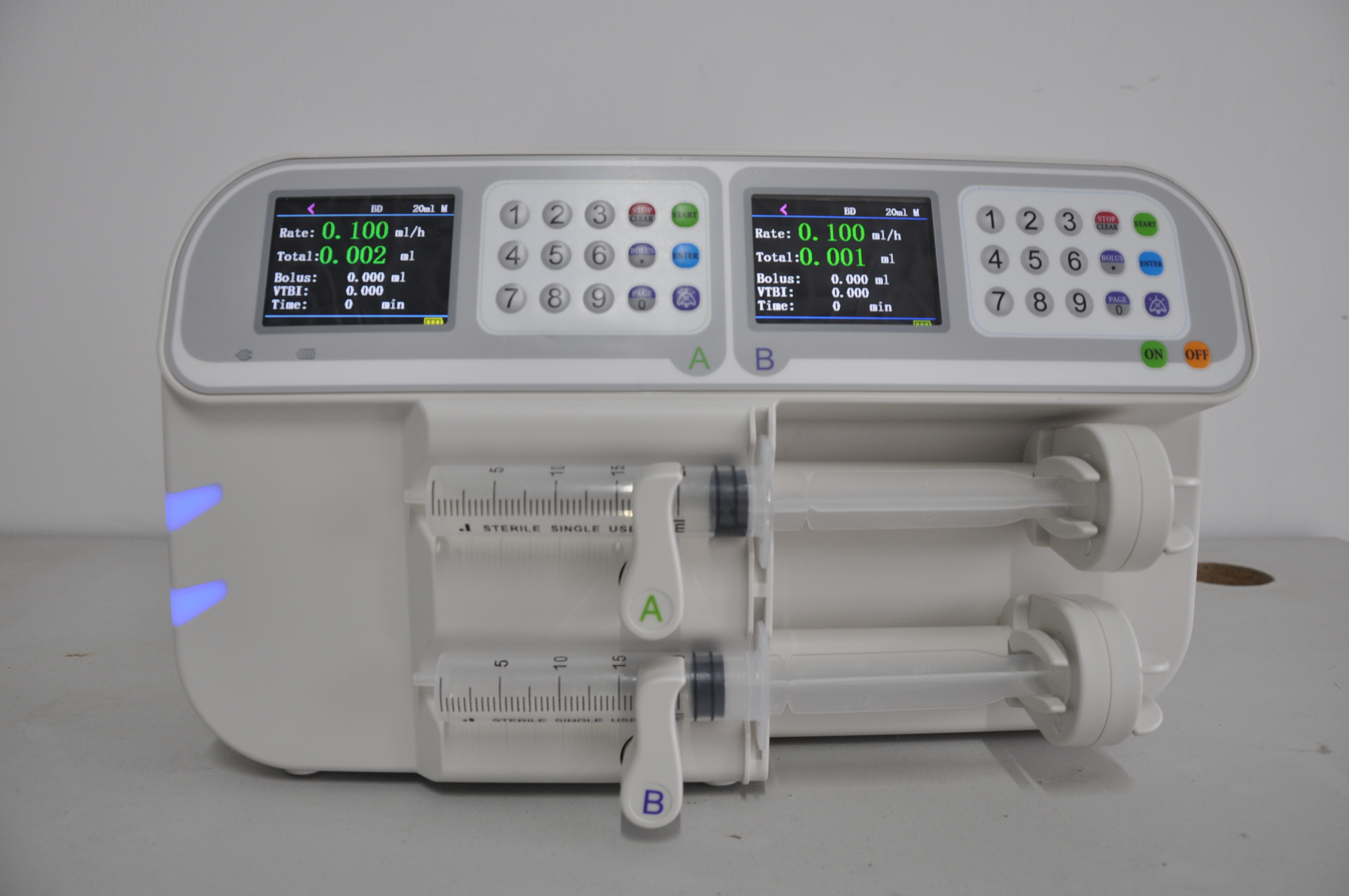

TCI100 series Syringe Pump

Advangtage

1. 2.8 Inch TFT LCD screen

2. 4-8 hours battery support

3. User friendly,easy and customized operation with numeric keypads

4. Customized Drug Library according to clinical use

5. Record of last setting for all parameters

6. Automatic Antibolus to ensure higher safety

7. Standard RS232 for internal & external communication

8. Multiple infusion mode for different infusion requirement

9. Special designed extension line clamp to fix the line

10. Ideally suitable for OT, ICCU, NICU, PICU, and normal wards infusion etc

11. International units more than 10 group, .mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h, etc

12. Night Mode to decrease the lightness and voice of pumps for patient's good rest at night.

13.Operation modes: Plasma TCI(target controlled infusion)mode, Effect site TCI mode, Continuous infusion mode,Dosage infusion mode,Avoirdupois mode

14. Agraphic display shows the trajectory over time, advanced intelligence can forecast the recovery time, which makes it easier and convenient to control anesthetic depth.

15. Anesthetic drug : Propofol , Fentanyl , Sufentanil , Remifentanil ,Etomidate, Midazolam, Atracurium, Rocuronium Bromide, Vecuronium Bromide ,and more than 200 drugs

16. Data storage and transmission the data in real time

Description

Parameters CTN-TCI100CTN-TCI100CTN-TCI100
Channel Single Double Triple
Syringe Size 5,10,20,30,50/60ml
Drug LibraryDefault 9 - 12 drugs, can be updated & added to 2000
Infusion ModesRate Mode, Time Mode, Body Weight Mode, Night Mode,  Sequential Mode (Optional),Pause Mode (Optional)
Accuracy ±3%
Volume Range 0~99999 ml
Flow Rate Step byIncrements at 0.1 ml/h
Flow Rate Range
5 ml Syringe 0.1ml/h-150ml/h
10ml Syringe 0.1ml/h-300ml/h
20ml Syringe 0.1ml/h-600ml/h
30ml Syringe 0.1ml/h-900ml/h
50/60ml Syringe 0.1ml/h-1500ml/h
Purge/Bolus Rate/Top  Flow Rate5 ml Syringe 0.1ml/h-150ml/h
10ml Syringe 0.1ml/h-300ml/h
20ml Syringe 0.1ml/h-600ml/h
30ml Syringe 0.1ml/h-900ml/h
50/60ml Syringe 0.1ml/h-1500ml/h
Audible & Visible  Alarms Self Test Failure, Syringe Dislocation,Occlusion,Near End,Low Battery,Battery  Exausted,VTBI Completion,Syringe Empty,Motor Malfunction,Incorrect Syringe  Specification,Circuit Malfunction,Internal Communication Malfunction, Master CPU Malfunction,Monitoring CPU Malfunction
KVO ≤1ml/h
Occlusion  Pressure High: 0.02~0.08 Mpa
Middle: 0.04~0.12 Mpa
Low: 0.07~0.16 Mpa
Power Supply AC: 100-240V, 50Hz/60Hz ; DC:11.1V: Lithium Battery,
Battery 8 hours 4 hours 2 hours
Power Consumption 25 VA30 VA35 VA
Dimension & Weight 315mm×120mm×140mm ; 2.4Kg350mm×130mm×205mm ; 3.3Kg350mm×180mm×240mm ;5.5Kg
Classification Class II,type CF,IPX4
Optional FunctionEvent Log with at least 2000 history records
