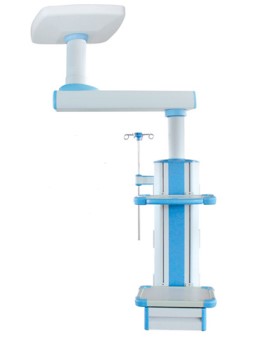

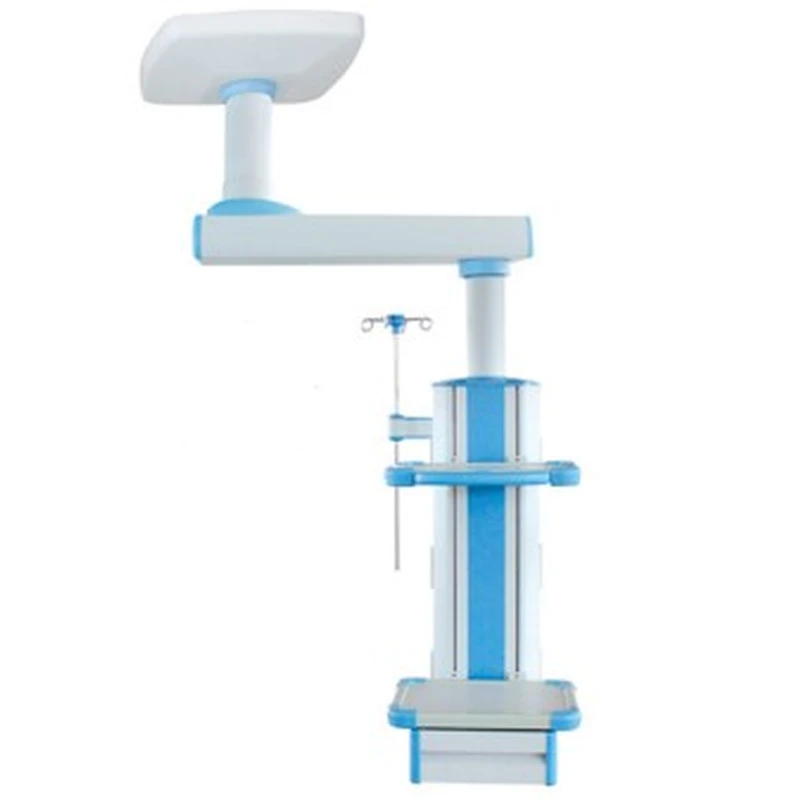

Surgical Tower (optional electric)

1.Electric Voltage： AC220V、50HZ。

2.Range of cross arm movement (radius)：700-1100mm（Can be configured according to requirements）

3、Horizontal rotation angle：0～360°，The cross arm and the terminal box can rotate horizontally separately or at the same time;

4.Instrument loading weigh≤60kg；

5.High-end pallet table: 2-layer (adjustable height)

optional (550*400*30mm/550*400*43mm) ;

Adopt 10mm*30mm international standard side rail enclosure, rounded corner anti-collision design

6.Gas terminal interface（Can be configured according to requirements）：

  a、Different color and shape, to avoid mistake

b、More than 20,000 mating cycles；

c、Adopt secondary seal，with three states (on, off, pull), can be repaired with air；

7.Power socket：10PCS、220V  10A；

8.Grounding points: 2个；

9.Stainless steel adjustable infusion rod holder:1PCS

10.Stainless steel Injection rack unit :1 set；

11.The main material adopts high-strength aluminum alloy profile；

12.Surface treatment adopts electrostatic spraying

13. Install as suspended ceiling

14.Storage basket:1PCS
