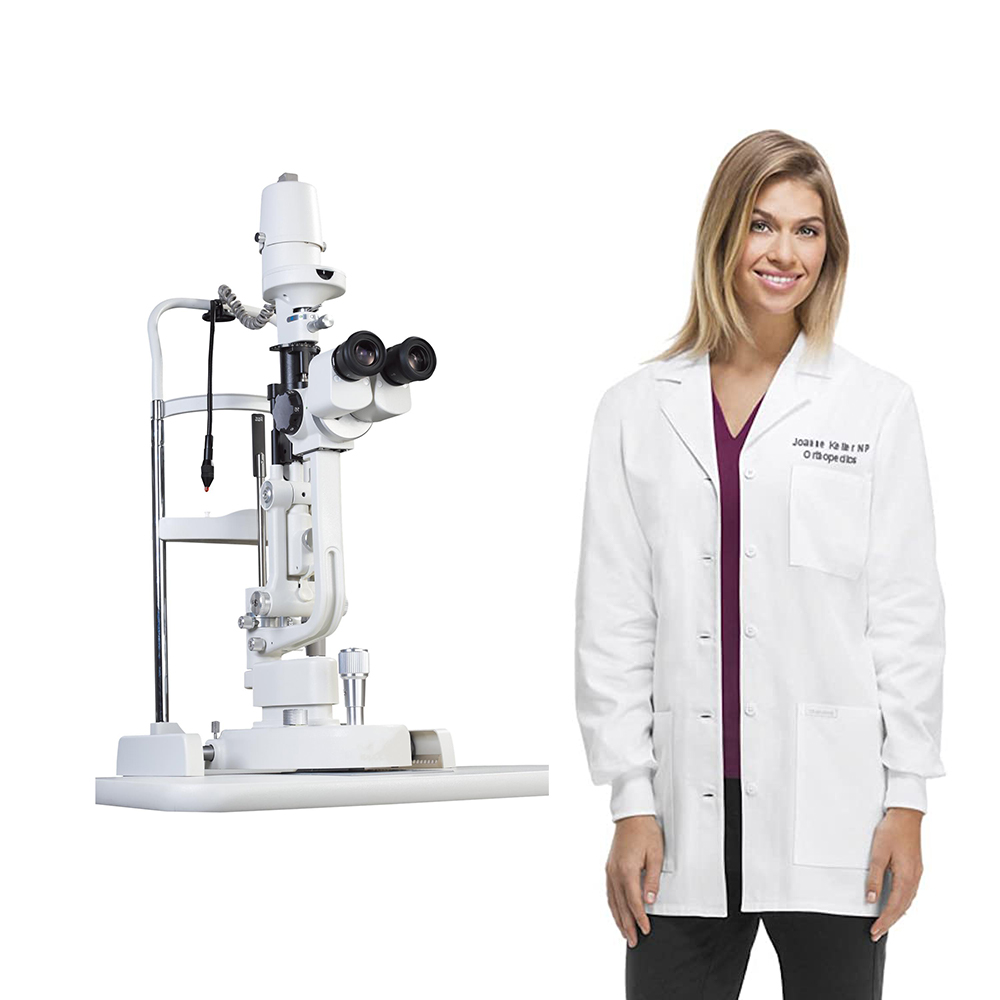

Features:
◆ The Galilean type microscope system adopts revolving drum
◆ The excellent optical system can give you a clear and clean image.
◆ The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object.
◆ The German imported 6V20W Osram halogen lamp can fully make use of every beam. It can make sure that you get the clean and clear image effect with the minimum illumination, at the same time can protect the patient's eye.
◆ The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses.
◆ The modular design can reserve the adapters, this is convenient to connect beam splitter, digital camera adapter and the CCD adapter, thus can upgrade to the digital camera system or the image capture system.
◆ The adapter function is good, digital single lens reflex camera and the digital vidicon are compatible.
Microscope type | Galilean-Type | Magnification | SL-350S:3-STEP |
SL-350: 5-STEP | |||
Eye piece | 12.5× | Total magnification Ratio | 10×, 16×, 25×(standard configuration) |
Range of pupil distance | 55mm~78mm | Field of view | 40× (Ø5.5mm), 25× (Ø8.5mm), 16× (Ø13.5mm), 10×(Ø22mm), 6× (Ø34.7mm) |
Slit width | 0 ~14mm adjustable | Adjustment of diopter | ±6D |
Slit angle | 0º~180º | Slit height | 1~14mm adjustable |
Light spot diamater | φ14mm, φ10mm, φ5mm,φ3mm, φ2mm, φ1mm, φ0.2mm | Slit inclination | 5º, 10º, 15º, 20º |
Illumination bulb | 6V/20W Halogen Lamp | Filter | Thermal safety,UV, Red-free,Cobalt Blue |
Power | 220V/110V~±10% | Dimension | 740 x 450 x 500(mm) |
