Features :

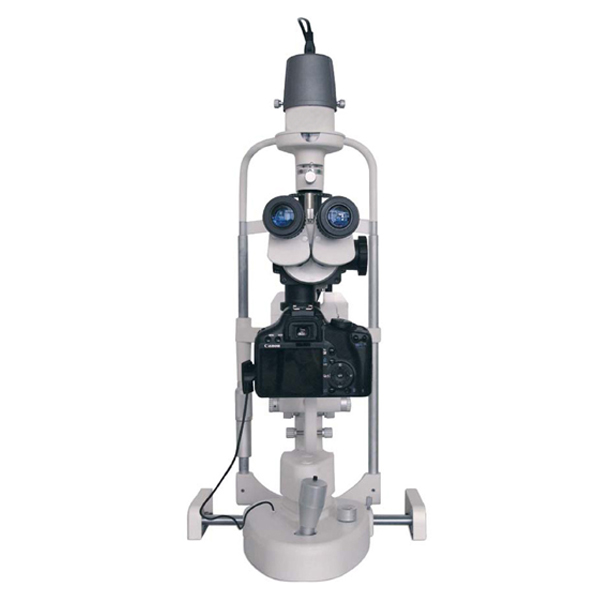

• This system was made up by the SL-350 slit lamp combining with the following accessories:
• digital camera adaptor, beam splitter, digital camera, and background illumination model (3V).
• Besides observing the eye diseases, it can take pictures, store and print the image. This is convenient to observe the patients’ condition and evaluate the remedial effect.
• The high resolution ink jet printer, the image can be printed clearly.
• This system adopts the professional digital single lens reflex camera.
Microscope type | Galilean-Type | Magnification | 5-STEP |
Eye piece | 12.5× | Total magnificationRatio | 10×, 16×, 25×(standard configuration) |
Range of pupil distance | 55mm~78mm | Field of view | 40× (Ø5.5mm), 25× (Ø8.5mm), 16× (Ø13.5mm), 10×(Ø22mm), 6× (Ø34.7mm) |
Slit width | 0 ~14mm adjustable | Adjustment of diopter | ±6D |
Slit angle | 0º~180º | Slit height | 1~14mm adjustable |
Light spot diamater | φ14mm,φ10mm, φ5mm,φ3mm, φ2mm, φ1mm, φ0.2mm | Slit inclination | 5 º ,10 º ,15 º ,20 º |
Illumination bulb | 6V/20W Halogen Lamp | Filter | Thermal safety, UV, Red-free,Cobalt Blue |
Power | 220V/110V~±10% | Dimension | 740 x 450 x 500(mm) |
Advantage 3 | high resolution ink jet printer | Filter | thermal safety,UV,Red-free,Cobalt Blue |
Illumination Bulb | 6v/20w halogen lamp | General Use | General Use |
Package | carton box |
