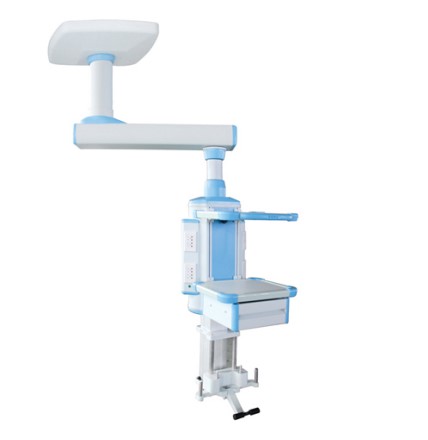

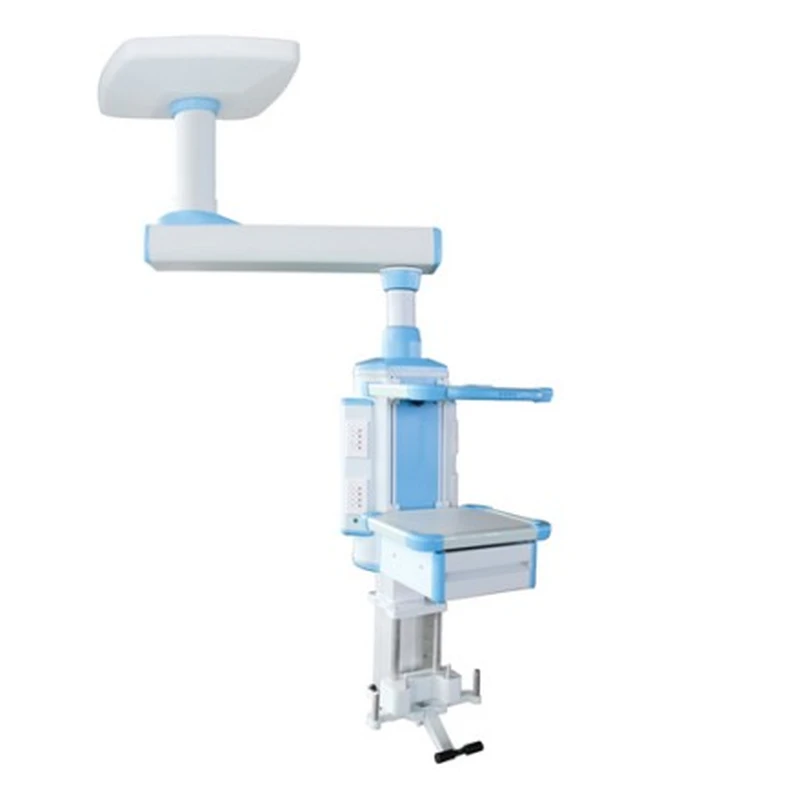

Single-arm electric anesthesia tower

1.Electric Voltage： AC220V、50HZ。

2.Range of cross arm movement (radius)：800mm（Can be configured according to requirements）

3、Horizontal rotation angle：0～340°，The cross arm and the terminal box can rotate horizontally separately or at the same time;

4.Instrument loading weigh≤100kg；

5.High-end pallet table: 2-layer (adjustable height)

optional (550*400*30mm/550*400*43mm) ;

Adopt rounded corner anti-collision design with a drawer

6.Gas terminal interface: Oxygen* 2，vacuum*2（Can be configured according to requirements）：

  a、Different color and shape, to avoid mistake

b、More than 20,000 mating cycles；

7.Power socket：6 PCS、220V  10A；

8.Grounding points: 2个；

9.Stainless steel adjustable infusion rod holder:1PCS

10.Stainless steel Injection rack unit :1 set；

11.The main material adopts high-strength aluminum alloy profile；

12.Surface treatment adopts electrostatic spraying

13.Install as suspended ceiling

14.Can hang anesthesia cart
