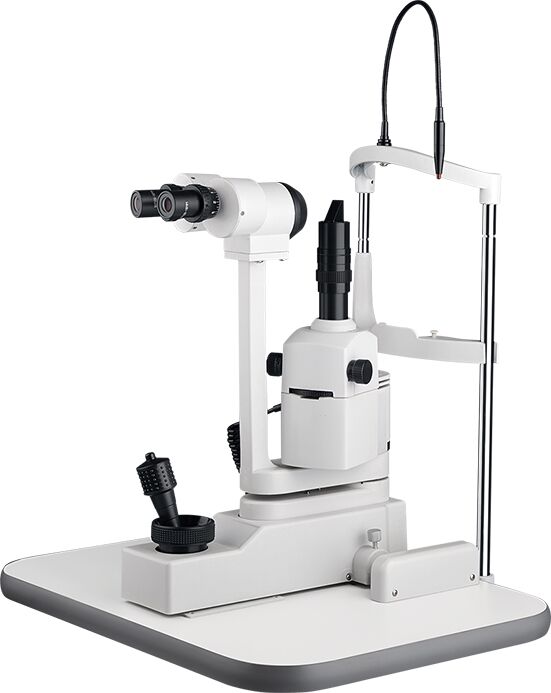

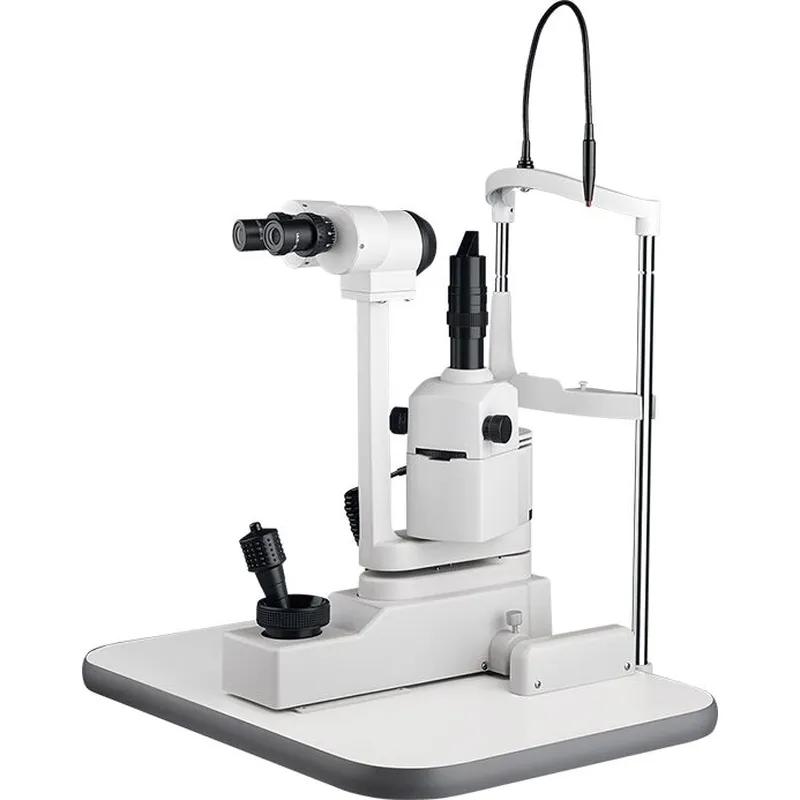

Property of slit lamp | Microscope Type | Converging Stereoscope |
Magnification | 2 step magnifications | |
Eye piece | 10x | |
Total magnification and diameter of visual field | 10×(φ18) | |
Adjustable range of pupil distance | 50mm ~ 82mm | |
Adjustable diopter | +5D ~ -5D | |
Base | Left and right move | 110mm |
Forward and back move | 90mm | |
Up and down move | 30mm | |
Chin rest | Up and down move | 80mm |
Fixation lamp | Red LED | |
Property of illumination | Slit width Light spot diameter | 0 ~ 10mm continuous (at 10,slit becomes a circle ) 10mm ,3mm, 1mm , 0.2mm |
Filter | Heat absorption ,Red-free , Cobalt Blue | |
Illumination Bulb | 12V 50W halogen lamp | |
Power | Input Voltage Frequency Power Consumption | 220V 50H 68VA |
Weight and size | G.W N.W | 13kg 11kg |
Main Dimension | 455mm(L)× 385mm(W)× 630mm(H) |
