Specification
| Maximum Scanning Depth: | max. 250mm |
| Multi-frequency: | 5 segment frequencies |
| Cine Loop: | max. 64 frames |

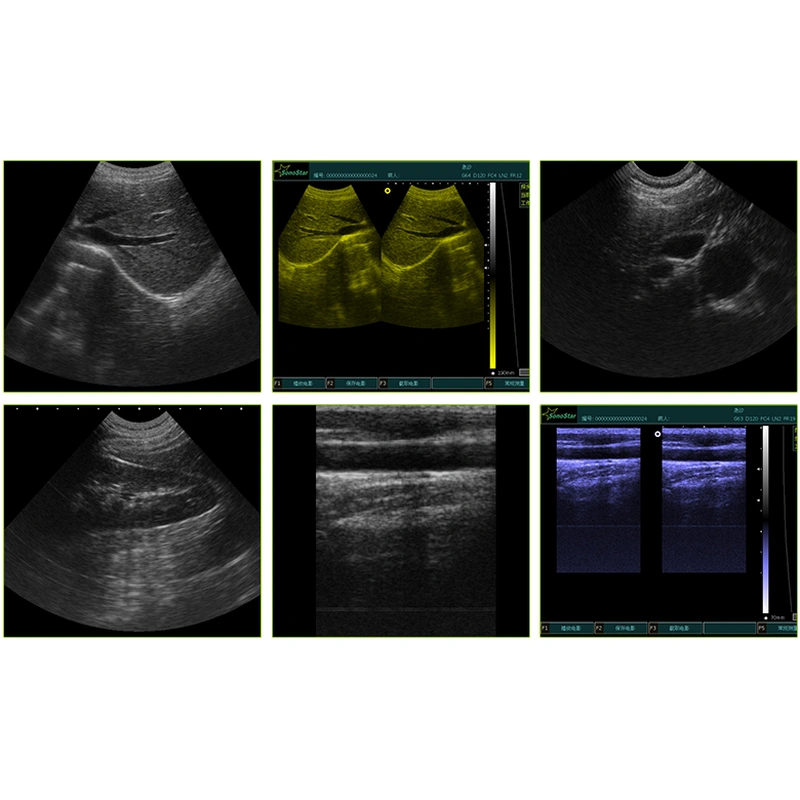

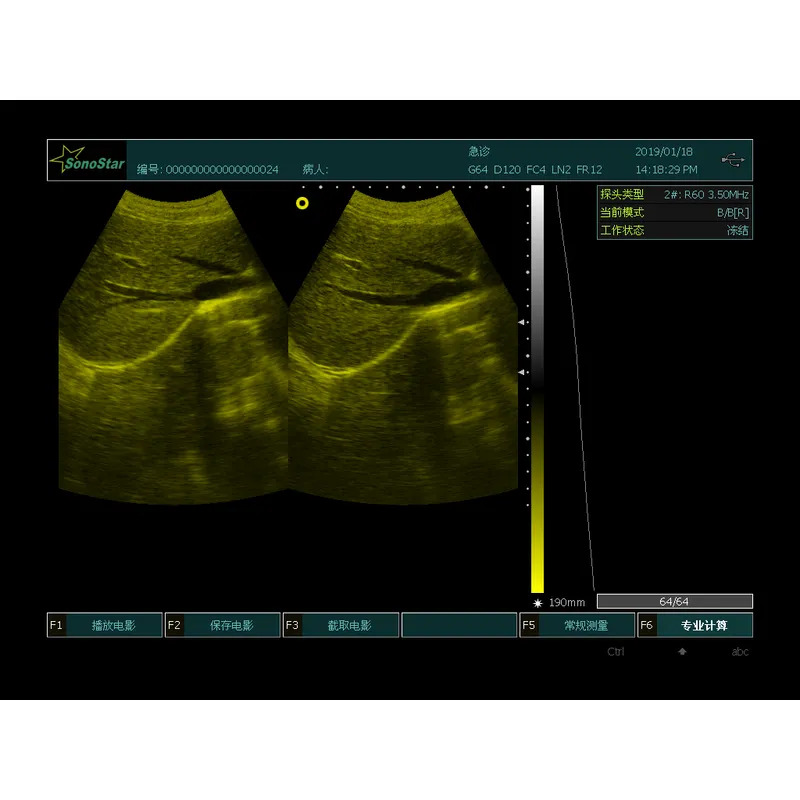

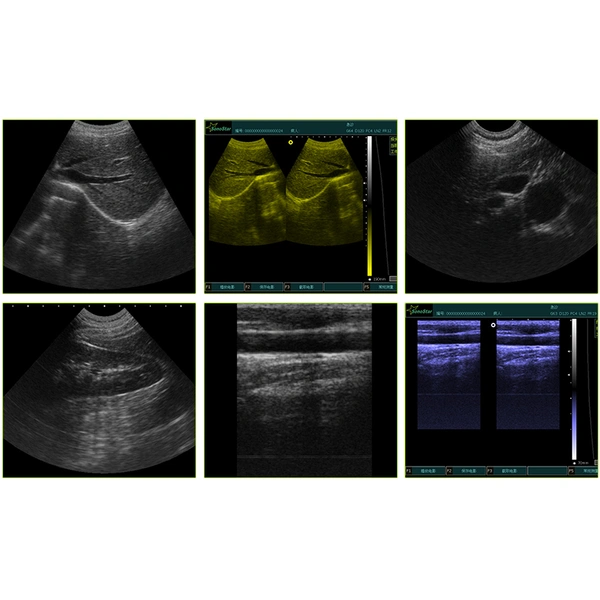

| Scanning mode: | B, 2B, B/M, M, 4B, |
| Zoom: | Real-time Zoom on B mode |
| Image gray scale: | 256 level gray scale |
| Image processing: | Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision. |
| Gain: 0-100dB; | Time gain control(TGC): 8 segment adjustment, B, M adjustment separately. |
| Measurement and calculation(human): | |
| B mode: | distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram; |
| M mode: | heart rate, time, distance, slope and stenosis; |
| Gynecology measurement: | Uterus, cervix, endometrium, L/R ovary; |
| Obstetric: | gestation age, fetal weight, AFI; |
| Cardiology: | LV, LV function, LVPW, RVAWT; |
| Urology: | transition zone volume, bladder volume, RUV, prostate, kidney; |
| Small parts: | optic, thyroid, jaw and face.x |
| Veterinary: | Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD |
| Supported output apparatus: | U-Disk, Laser/ink printer, video printer, VGA |
| Zoom: | 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 |
| Image store: | by hardisk or USB disk, can save image and also video(avi or swf format) |

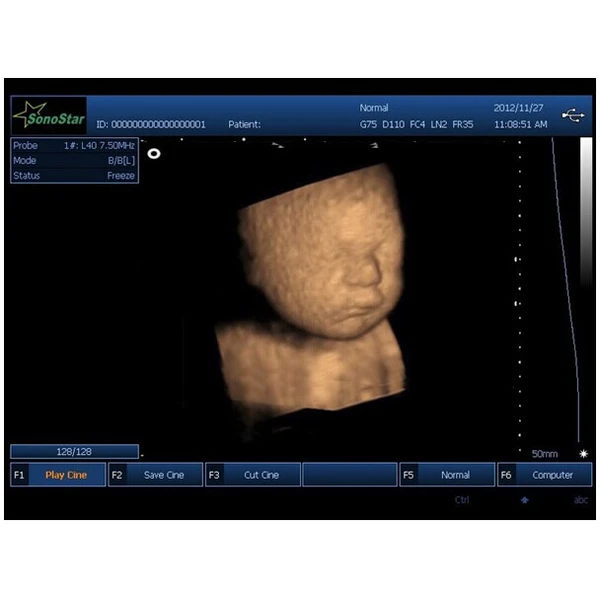

| 3D image function(function): | can get rebuilt 3D image by any probe |
| Work time by built-in battery: | about 5 hours |

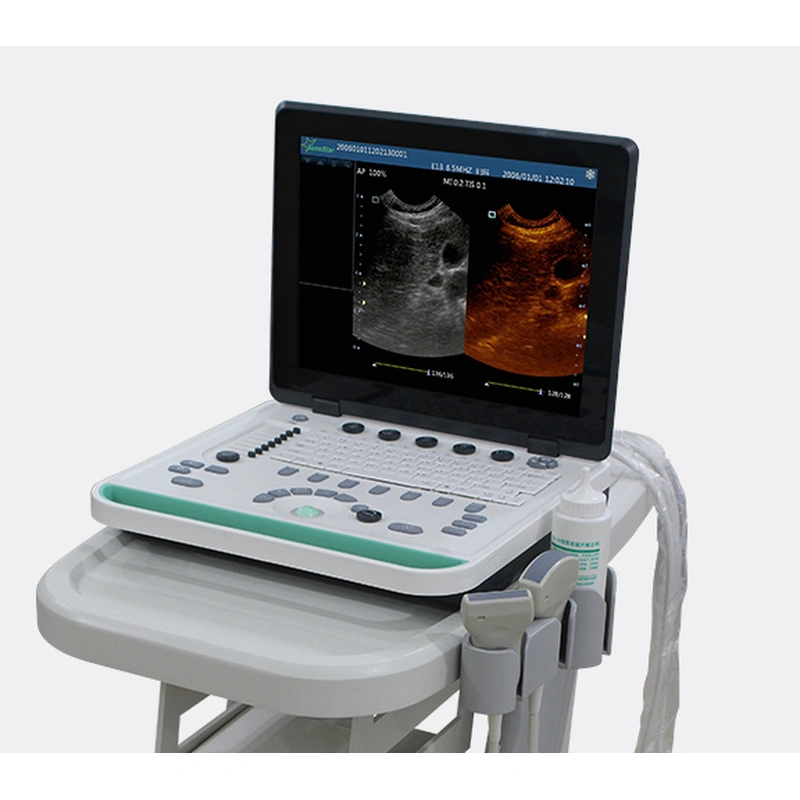

| Monitor: | 15 inch color LED screen |
| Probe Connector： | 2 |

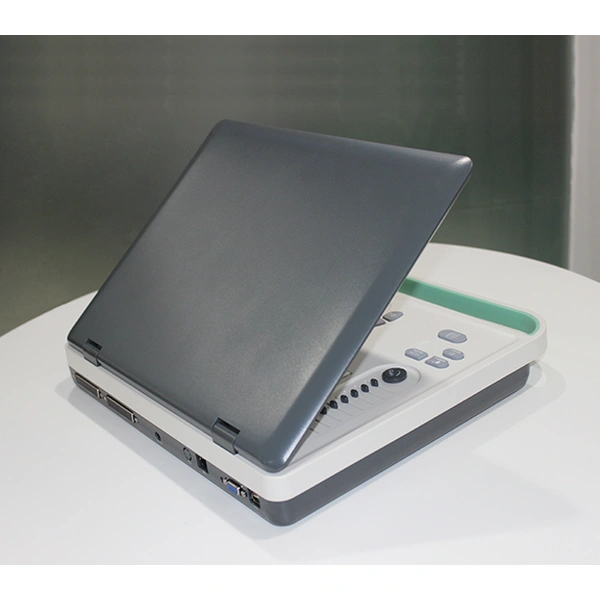

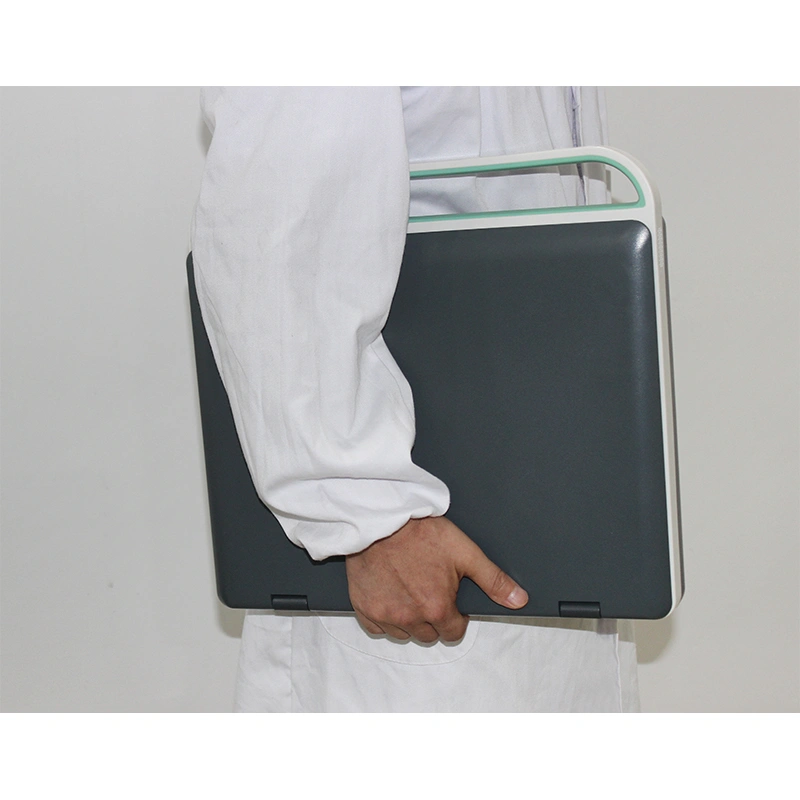

| Dimension: | 362mm×340mm×60mm |
| Weight: | Around 4.8Kg |
