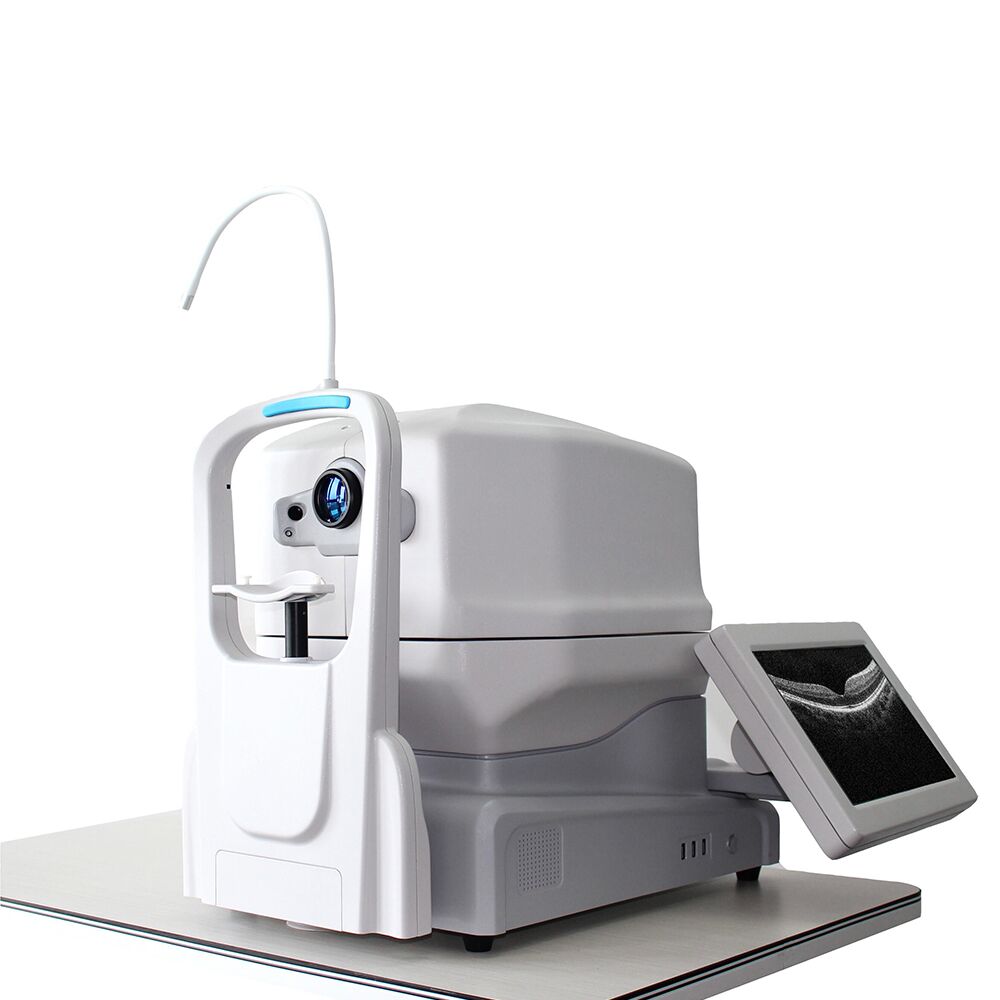

OCT-500 Optical Coherence Tomography non contact tonometer Machine

OCT-500 Optical Coherence Tomography non contact tonometer Machine

Features:

1.Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.

2.PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.

3.Easy Installation:No complex connection or setup. Compact body can fit in even small space.

inquiry

Description

Methodology	Spectral domain OCT
Axial resolution	≤ 6 µm (in tissue)
Transverse resolution	≤ 20 µm (in tissue)
Scan depth	≥ 2.5 mm (in air)
Scan range	≥ 6 mm
Scan speed	≥ 24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes	30, Raster, Circle
Fundus image	OCT en face
Focus adjustment	-150 to +150
Pupil diameter	≥ 3 mm
OCT light source	840 nm SLD
Optical power	750 µW (at cornea)
Operation	13.3’’touch screen, optional external mouse or keyboard
Power supply	100-240 V, 50/60 Hz
Dimensions	497 mm × 395 mm × 490 mm (L× W × H)
Weight	LED dot matrix
External fixtion	34 kg (75 lbs)
