Computer Ward Round Cart LX-CB-P4

Description

Applications:

For Abdominal, OB&GYN ,Cardiac,Urinary, Small Parts, Superficial, Vascular, Pediatrics (neonatal), Emergency, Physical examination and other aspects of examination and diagnosis.

Technical Specification

Digital beam former

Multiple beam synthesis

2D grayscale

THI

B+C duplex synchronous modes

M mode

Color M mode

Anatomical M mode, sampling line ≥ 3

Doppler imaging (including color Doppler, energy Doppler, directional energy Doppler mode)

Spectral Doppler imaging (including Pulsed Wave, high Pulse Repetition Frequency, Continuous Wave)

Tissue Doppler Imaging (including Tissue velocity map, M-type, spectrum imaging, etc.）

Free hand 3D

4D Imaging

★ Contrast Imaging

Trapezoidal imaging

★ PView Panoramic Imaging

Spatial Compound Imaging (for abdomen, maternity, blood vessels, superficial small organs to be displayed 2B comparison on the same screen)

Frequency Compound Iimaging

Extended Imaging (convex and linear probes are both available)

Real-time 2B Contrast Imaging

Real-time Triple-synchronous Imaging (B+C+D)

Speckle Reduce Imaging

★ Elastography

★ User Interface: contains 10 operating language interfaces.

Technical Parameter

15 inch high resolution LED screen

★ Probe connectors: ≥2

2D grayscale mode

1）Digital beamformer

2）Digital full-motion dynamic focusing, digital variable aperture and dynamic apodization, A/D ≥ 15 bit

3）Receiving mode: transmitting and receiving channels ≥ 1024, multiple times signal parallel processing

4）Scan line: line density ≥ 512 ultrasonic line per frame

5）Focus: ≥ 10 segments, with special menu adjustment for focus position

6）TGC: ≥8 segments

7）Gain adjustment: B/M/D individually adjustable, ≥200dB

8）Max scanning depth: ≥360mm, max detecting depth: ≥300mm

9）Grayscale ≥67 levels, visible and adjustable

10）Sound Power: 1%-100%

11）Linear probe 2D independent steer

12）Partial enlargement（1.5/2.0/2.5/3.0/3.5、4.0/4.5/5.0/10 times）

Color Doppler Imaging

1）Imaging method: including speed, speed variance, energy, directional energy display, etc.

2）Display mode: B/C, B/C/M, B/PW, B/C/PW

3）Line density ≥ 3 levels

4）Color hiding technology: hide color without returning to B mode, only display color speed ruler

5）Blood flow map function, color flow sectional view to measure intravascular flow rate

Pulse Wave Doppler mode

1. Display format: full screen, duplex / triple (PW only)

2. Gain: ≥200dB

3. Multi-spectral speed: ≥ 4 adjustable

4. Max measurement speed: PWD: positive or negative blood flow velocity ≥ 7.6 m / s;

CWD: blood flow velocity ≥ 20.0 m / s, minimum velocity: ≤ 5 mm / s (non-noise signal);

5. Zero shift: ≥8 levels

6. Display mode: B, PW, B/PW, B/C/PW, B/CW, B/C/CW

7. Automatic spectrum measurement, manual measurement

8. Display control: inversion, zero shift, B update, D expansion, B/D expansion, etc.

9. Smart Doppler technology allows for free switching between real-time B+CFM mode and real-time PW mode.

4D mode

1. 4D Imaging mode: surface mode, max mode, min mode, perspective mode, etc.

2. Display mode: single, dual, quad

3. Crop function

4. Transparency 1-490: 10 levels adjustable

5. Threshold 0-129

6. Smoothing ≥4

7. 4D format to store images, cines, and data

★ Panoramic Imaging

1. Display length up to 50cm at high resolution

2. Supports forward erasing during imaging without re-imaging

3. Supports 2D panoramic and color panoramic imaging

Puncture Guide function（linear probe）

1. Needle angle and position adjustable

2. Two guiding modes: puncture line and puncture guidance range

Probe connectors: ≥2, active. No limit to 4D volume probe.

Supports multiple frequency probes, independent frequency conversion between 2D mode and color mode.

Probe options: convex, linear, trans-vaginal, phased array, 4D volume probes etc..

1. Convex probe:

Fundamental Frequency: 2.0MHz/2.3MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/4.6MHz/5.0MHz/5.4MHz;

Harmonic Frequency: 4.0MHz/4.6MHz/5.0MHz

2. Linear probe:

Fundamental Frequency: 4.0MHz/4.6MHz/5.0MHz/6.0MHz/7.0MHz/8.0MHz/9.2MHz/10.0MHz/12.0MHz/13.3MHz;

Harmonic Frequency: 8.0MHz/9.2MHz/10.0MHz

3. Trans-vaginal probe:

Fundamental Frequency: 3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz/10.0MHz;

Harmonic Frequency: 6.0MHz/7.0MHz/8.0MHz

4. Micro-convex probe:

Fundamental Frequency: 3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz;

Harmonic Frequency: 6.0MHz/7.0MHz/8.0MHz

5. Phased array probe (adult):

Fundamental Frequency: 1.7MHz/1.9MHz/2.1MHz/2.5MHz/3.0MHz/3.4MHz/3.8MHz/4.2MHz/5.0MHz;

Harmonic Frequency: 3.4MHz/3.8MHz/4.2MHz

6. Phased array probe (pediatric):

Fundamental Frequency: 3.0MHz/ 3.5MHz/ 4.0MHz/ 5.0MHz/ 5.4MHz/6.0MHz/7.0MHz/8.0MHz;

Harmonic Frequency: 6.0MHz

7. 4D Volume probe:

Fundamental Frequency: 2.0MHz/2.5MHz/3.0MHz/3.3MHz/3.7MHz/4.0MHz/5.0MHz/6.0MHz;

Harmonic Frequency: 4.0MHz/5.0MHz/6.0MHz

Measurement/Analysis/Report

General measurement: distance measurement, area and perimeter measurement by ellipse and trace measurement, volume measurement.

Specialist measurement

1. Abdomen, gynecology, obstetrics, cardiac, urinary, small organs, pediatrics, blood vessels, etc.

2. Optional automatic NT measurement

3. Automatic accumulation of amniotic fluid index (AFI)

4. Auto IMT (intima-media thickness), can automatically trace the media membrane in the anterior and posterior wall of the blood vessel, automatically measure the thickness of the media membrane, measurement parameters

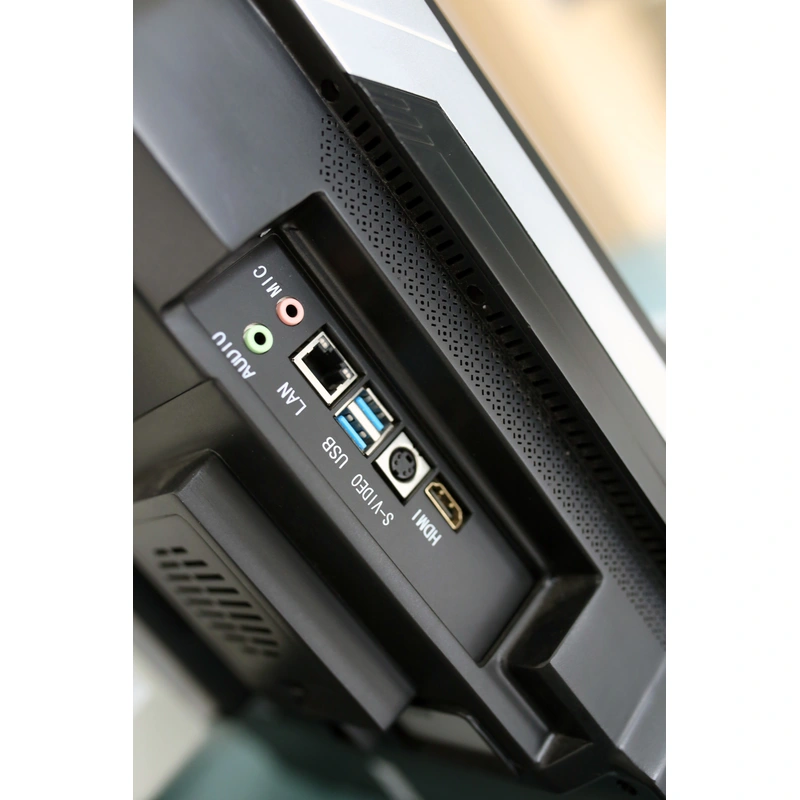

Peripheral device and storage function

Configure a set of ultrasound workstation, which must have a registration certificate.

Graphical workstation computer configuration requirements:

Computer configuration requirements:

1. CPU: ≥ Intel or AMD, quad core, the main frequency ≥ 3.5GHz;

2. Motherboard: ≥ Intel or AMD;

3. Memory ≥ 4GB DDR3 1600MHz;

4. Hard disk ≥ 256GB SSD;

5. Display ≥ 15-inch widescreen LED, resolution ≥ 1024*768;

6. Pre-installed genuine operating software.

Printer configuration requirements:

A4 format
