Features
-Real and delicate display of organic structure depends on full digital imaging technology with high precision; Multiple display modes , realizes multi
- Angle, multi - directional comparative observation;
-super - capacity movie playback and permanent image and video storage
-Stable and efficient Windows operation platform, Strong expansible functions , convenient for system upgrading and quick maintenance
-Adopt industrial platform , Hard disk≥128G, Fast data storage without loss
-Open DICOM interface to connect the hospital system and realize real-time data sending and receiving
-Equipped with Ultra ISO, System recovering USB flash disk, Take full backup at urgent moment

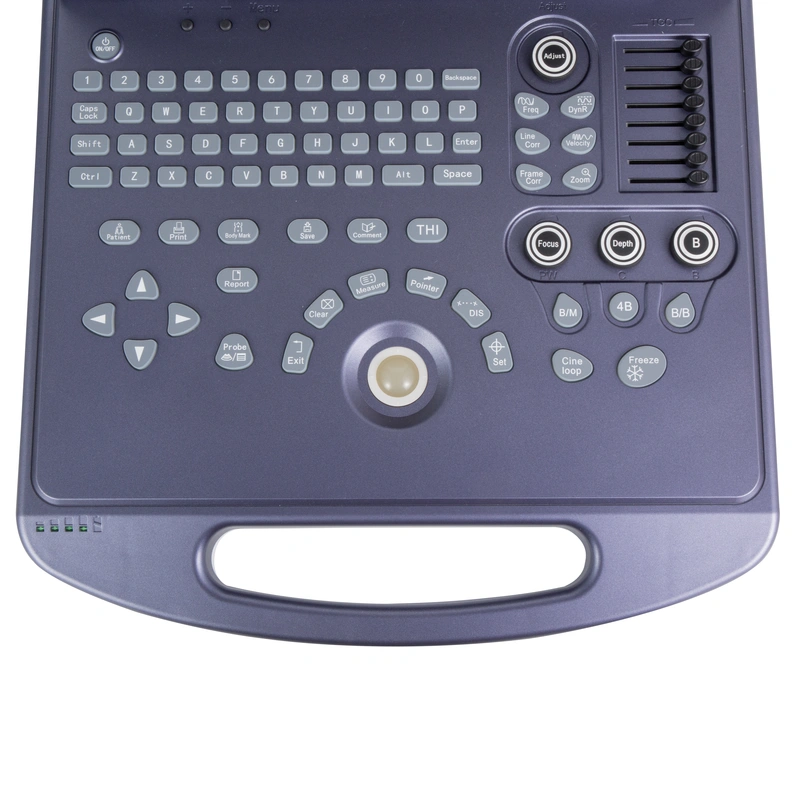

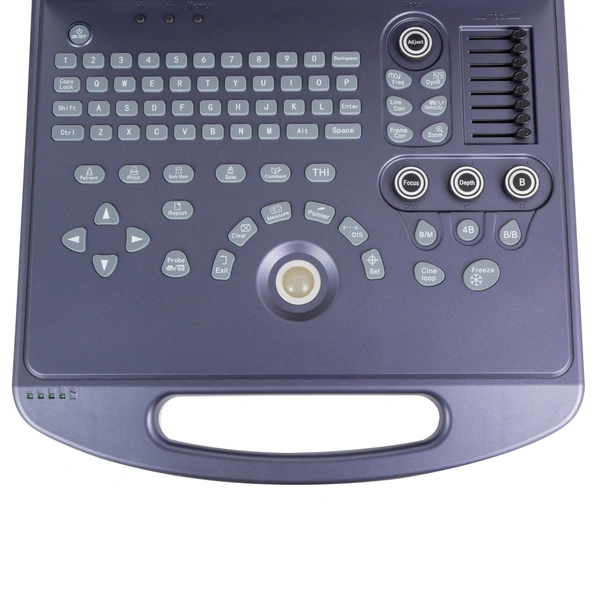

-Operation control panel、Display keys all can achieve functional Operation which will reduce adjustment time
One-key calls full-screen function
One-key calls for case information and entry
Performance Introduction
| Monitor: | 15 inch LED medical display, able to reverse it above 160 degree |
| Scanning method : | Convex/Linear/Micro-convex |
| Probe Sockets : | 1(Standard Configuration) ; With automatic identification function to support a variety of probe work. |
| Operation languages: | Chinese/English/Russian |
| Modes: | B、B+B、4B、B+M、M |
| Cineloop: | ≥1500 frames |
| Zoom : | 4, 30 levels (adjustable) |
| Body Marks : | up to 105 kinds |
| Frequency scope: | 3.5MHz convex : 3.5MHz、4.0MHz、4.3MHz、5.0MHz; 6.5MHz transvaginal: 5.0MHz、6.0MHz、7.0MHz、8.0MHz; 7.5MHz linear: 7.5MHz、8.6MHz、10MHz、12MHz; 6.0MHz micro-convex : 5.5MHz、6.0MHz、6.7MHz、7.5MHz; |
| Harmonic frequency scope: | 3.5MHz: H3.5MHz、H4.0MHz、H4.3MHz、H4.4MHz、H4.6MHz; 6.5MHz: 5.0MHz、6.0MHz、7.0MHz、8.0MHz; 7.5MHz: H8.0MHz、H8.6MHz、H9.2MHz、H10MHz; 6.0MHz: H5.5MHz、H5.7MHz、H6.0M、H6.5MHz; |
| Adjustable scanning range: | 7.5: 79-100%; 3.5: 46-60%; 6.0: 68-90% |
Measurement: | distance, Angle, area stenosis ratio, ventricular output, heart rate, and other professional software measurement package Measurement units can be switched between cm and mm |
| Grap Scale: | 256 Levels |
| Dynamic Range: | 64-192, Step 2, With independent buttons, 65 Levels visible and adjustable Cyclically |
| Gain: | 2-100, step 2 |
| All kinds of probes scanning depth: | |
| 3.5MHz convex : | 90-250 |
| 6.0MHz micro-convex : | 70-145 |
| 7.5MHz linear : | 40-90 |
| 6.5MHz trans-vaginal : | 50-125 |

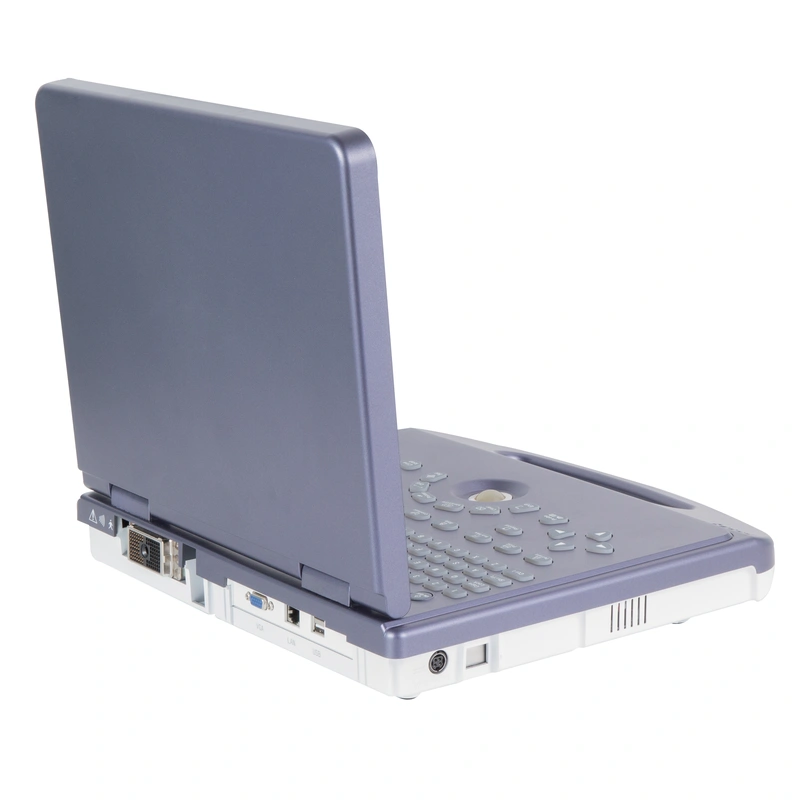

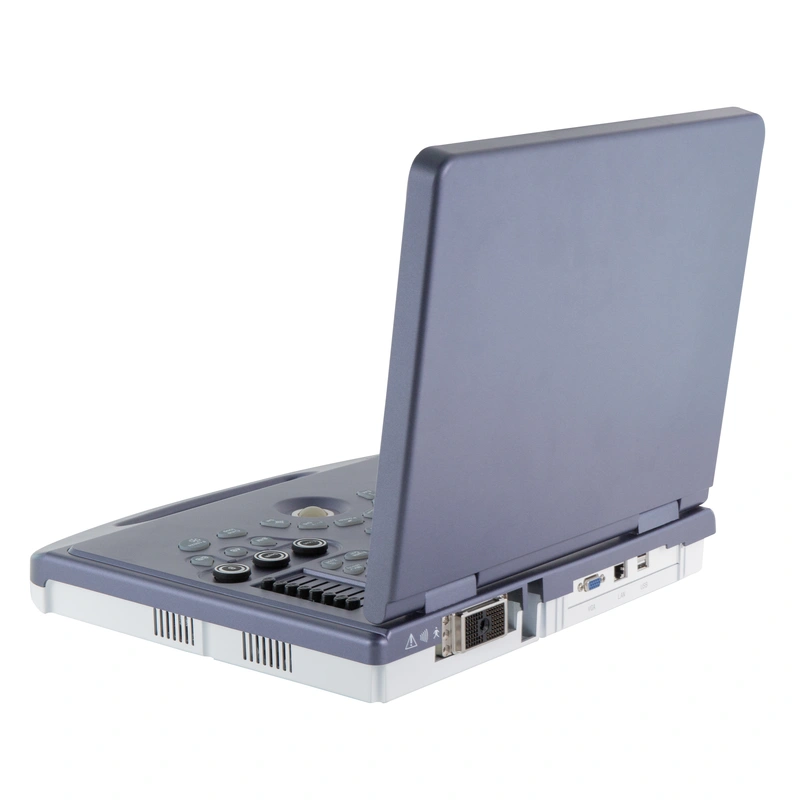

| Interfaces : | RS-232 、VGA 、VIDEO 、2 USB 、DICOM |
| Able to connect with laser/ink jet printer and other auxiliary equipment such as code scanner | |
| 8 kinds of pseudo Colors | |
| 7 kinds of Frame Correlation, with independent buttons, invisible and adjustable , 1-7 cyclically | |
| 5 kinds of Line Correlation, with independent buttons, invisible and adjustable , 1-5 cyclically | |
| 2 kinds of Line Density, with independent buttons, invisible and adjustable cyclically | |
| 2 levels harmonic wave , with independent buttons, invisible and adjustable cyclically | |
