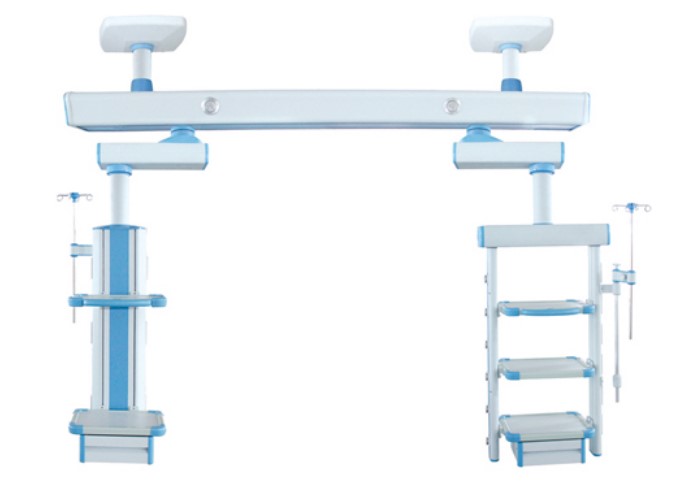

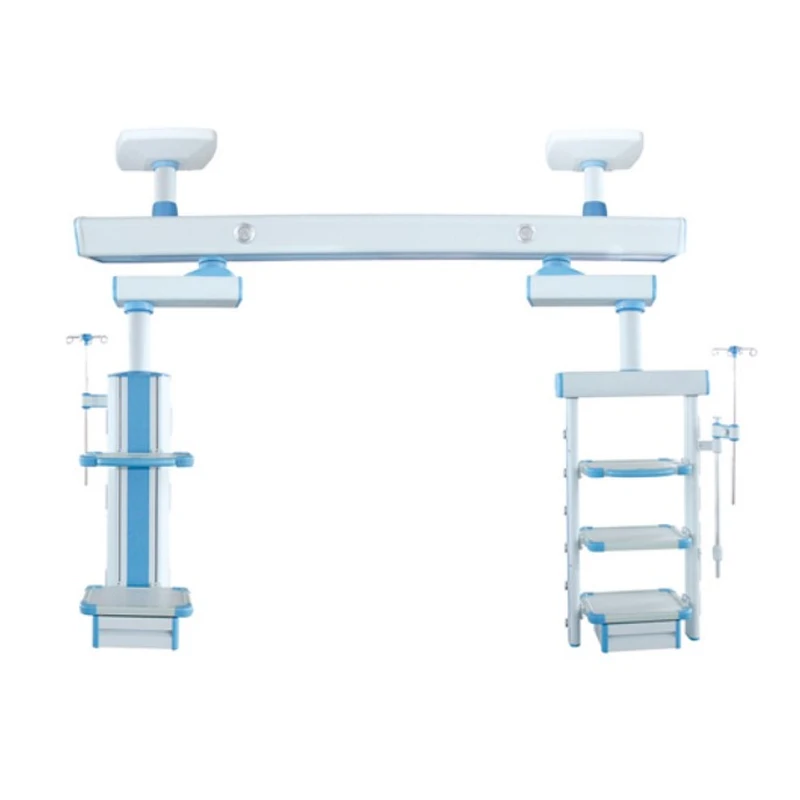

Model | OP-ICU02 |
1.Electric Voltage： AC220V、50HZ。 | |
2.Bridge length 2800～3000mm；Qty of light in front of bridge:2 pcs。 | |
3.Equipped with braking device, the equipment has no drift, and the equipment can move easily when released | |
4.Hanger type dry tower： 1 pcs ⑴High-end pallet table: 2-layer (adjustable height) optional (550*400*30mm/550*400*43mm) ; Adopt 10mm*30mm international standard side rail enclosure, rounded corner anti-collision design ⑵Gas terminal interface：（Oxygen* 2，vacuum*2, air *2 ）（Optional imported terminal）； a、Different color and shape, to avoid mistake b、More than 20,000 mating cycles； c、Adopt secondary seal，with three states (on, off, pull), can be repaired with air； ⑶Multi-function power socket：5PCS、220V； ⑷Grounding points：2PCS； ⑸Network interface：RJ45 1PCS；Telephone interface：1PCS； ⑹Flashlight:2PCS； ⑺Drawer1PCS; ⑻Rotatable：0～340°； ⑼Instrument loading weight≥80kg； ⑽All gas terminals, power connections, and weak current connections are placed on the terminal box, electricity and gas are separated, and the power and gas sources are respectively installed on the aluminum alloy column of the tower body | |
5.Suspended column wet section tower: 1PCS (1)High imitation pallet: 3 layers (adjustable in height) Optional( 550 * 400 * 30mm/ 550 * 400 * 43mm ); Adopt 10mm * 30mm international standard side rail enclosure, rounded corner anti-collision design (2)Gas terminal interface：（Oxygen* 2，vacuum*2, air *2 ） a、Different color and shape, to avoid mistake； b、More than 20,000 mating cycles； c、Adopt secondary seal，with three states (on, off, pull), can be repaired with air； (3)Multi-function power socket：5PCS,220V (4)Grounding points：2PCS； (5)Stainless steel adjustable infusion rod holder:1PCS； (6)Stainless steel adjustable Injection rack unit :2set；With 8 infusion bottle hooks (7)Storage basket:1PCS； (8)Rotatable：0～340°； (9)The power interface is on both sides of the tower body, and the gas source is distributed on the back side of the tower body to fully realize the separation of electricity and gas to ensure the safety of equipment | |
6.The main material adopts high-strength aluminum alloy profile | |
7.Surface treatment adopts electrostatic spraying | |
