Description


Feature:
-Small and light, easy to bring and operation
-High cost-effective
-Convex/Linear/Phasedarray 3 in 1 probe head, can select which to work easily

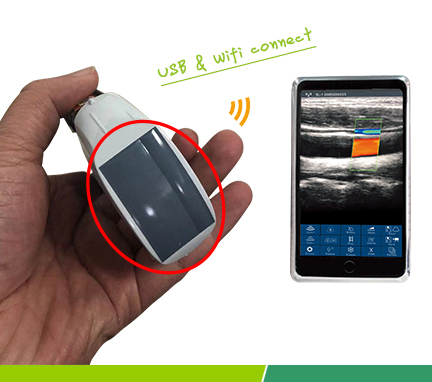

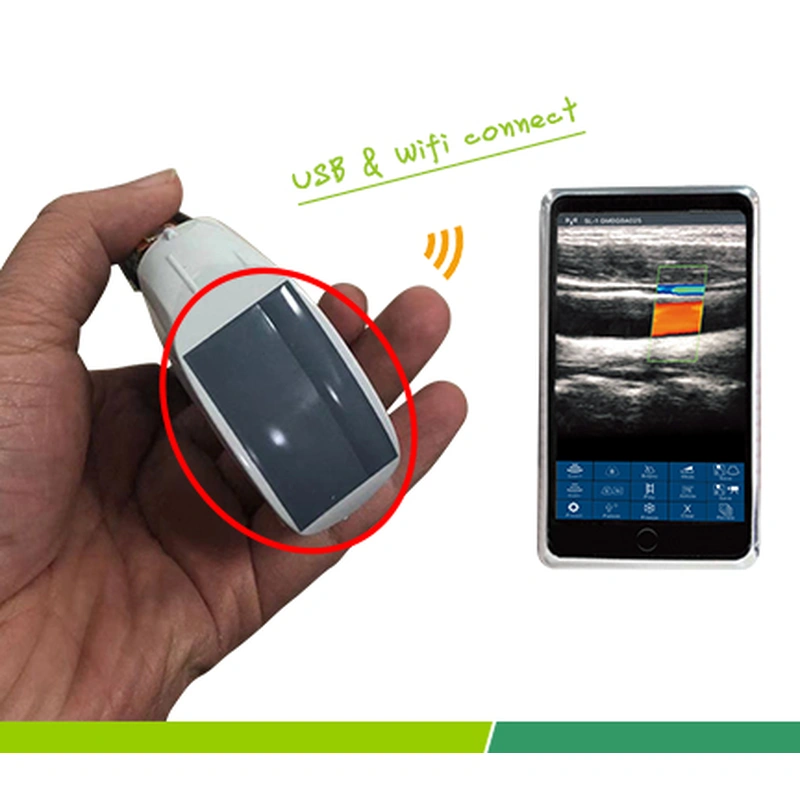

-The image transfer can by USB cable or also by wifi
-4 hours battery work time, and can charge by USB cable when work same time, or by wireless charge
-Support iOS/Android/Windows system by different APP

Specifications:
-Scanning mode: Electronic array
-Display mode: B, B/M, and Color, PW, PDI
-Frequency: Convex mode 3.5MHz/5MHz, Phasedarray mode 2.5MHz/5MHz, Linear mode 7.5MHz/10.0MHz
-Display Depth: Convex 90/160/220/305mm, Phasedarray 90/160mm, Linear 20/40/60/100mm
-Scan angle: convex/ linear 50°, Phasedarray 80°
-Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise
-Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development.
-Measure: Length, Area, Angle, Obstetrics
-Image transfer: by USB cable or also by wifi
-Wifi type: 802.11g/20MHz/5G/450Mbps
-Image frame rate: 18 frames/second
-Working system: Apple iOS and Android, Windows
-Battery working time: 4 hours
-Charge: 2 hours
-Dimension: 156×60×20mm
-Weight: 220g

Product Configuration
Standard Configuration:Probe Type Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc.
Optional:Carrying Bag or Aluminium Suitcase, Stainless Steel Puncture Guide, Android or iOS Tablet, Windows PC, Power Bank, Tablet Bracket, Trolley.
