Functional characteristics
-High - definition, functional portable ultrasound diagnostic apparatus
-The clear image 、user-friendly operation and strong endurance make it undoubtedly first preference to do examination in urban、town and outdoor under all kinds of enviroments
-A variety of charging methods also ensure the examination and consultation in different environments
-4-6h super long stand-by time

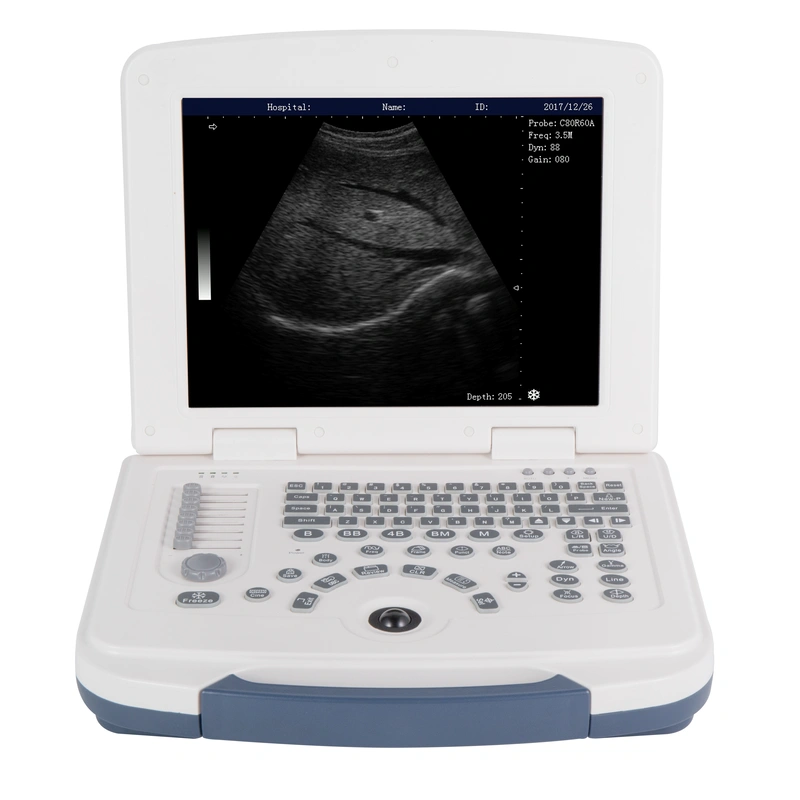

-12.1 inch LED liquid crystal display
-Real-time dynamic acoustic velocity track(DRA)
-Tissue Harmonic Imaging(THI)
-Stable and concise operation system

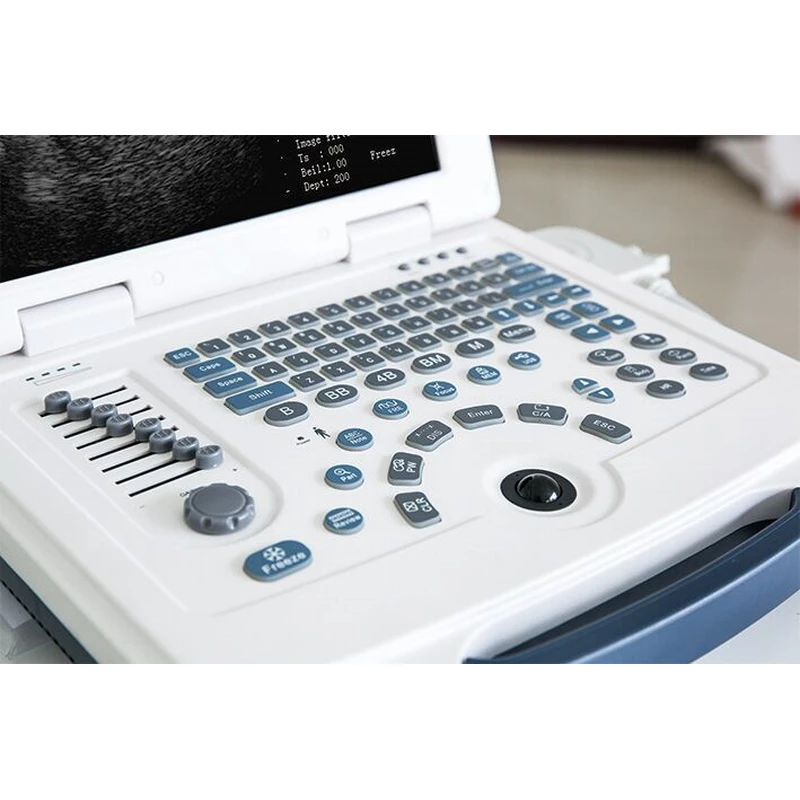

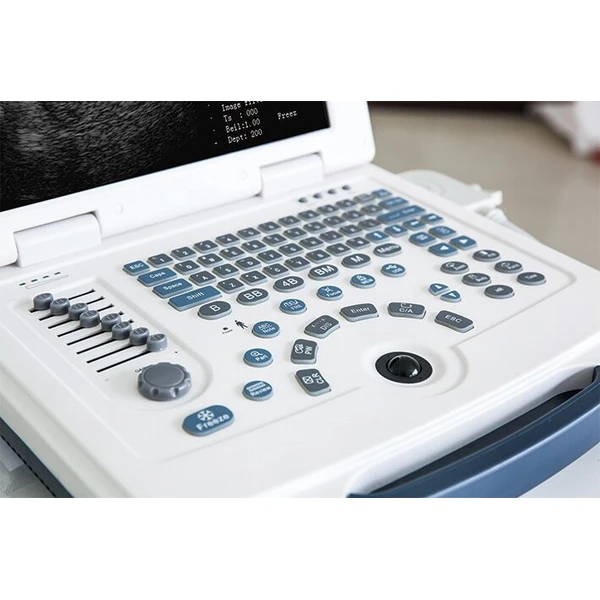

-Backlight silicone keyboard which is more comfortable wear-resistant meets using in dark rooms
-Intelligent menu, man - machine dialogue easily and fastly
-Puncture guidance line, angle and position adjustable
-17-level magnification shows that lesion diagnosis is more accurate
-External USB storage, it's more convenient for image uploading
-Maximum 655 frames video playback, image automatic loop demonstration
-Rich measurement functions: distance, circumference, area, volume, obstetric measurement scale, cardiac: pulmonary artery, mitral valve, heart rate, ventricular output and other measurements;Histogram measurement.
Performance introduction
| Display Modes: | B、B+B、4B、B+M、M |
| Electronic focusing: | whole-process focusing technology |
| Body marks: | ≥40 kinds |
| Frequency range: | 3.5MHz: 2.5MHz、3.5MHz、4.5MHz、5.5MHz； 6.5MHz: 5.5MHz、6.5MHz、7.5MHz、8.5MHz； 7.5MHz: 6.5MHz、7.5MHz、8.5MHz、9.5MHz； |
| Image Mirror: | Up/down, Left/Right, mirror conversion and operation in any mode In any imaging mode, the data can be measured in real time Obstetric measurement datas memory automatically and report generation function |
| Character display: | date, clock, name, gender, age, doctor, hospital, comment (full screen character editor) |
| Support for permanent storage; | Support U disk storage |
| Gray Scale: | 256 Levels With gravel positioning, dynamic target tracking |
| Dynamic Range: | 64-192dB, step 2, with independent buttons, invisble and adjustable cyclically |
| Intelligent TGC : | 8 segments. |
| Gain: | 0-100, step 2 Variable aperture, dynamic apodization, dynamic digital filtering, etc. Tissue Harmonic Imaging, invisble and adjustable 8 kinds of colors |
| 12 kinds of frame correlation, with independent buttons, visible and adjustable, increase or decrease in time according to the image Scanning range ≥12 levels, with independent buttons, visible and adjustable, increase or decrease in time according to the image | |
| Maximum depth: | ≥190mm; |

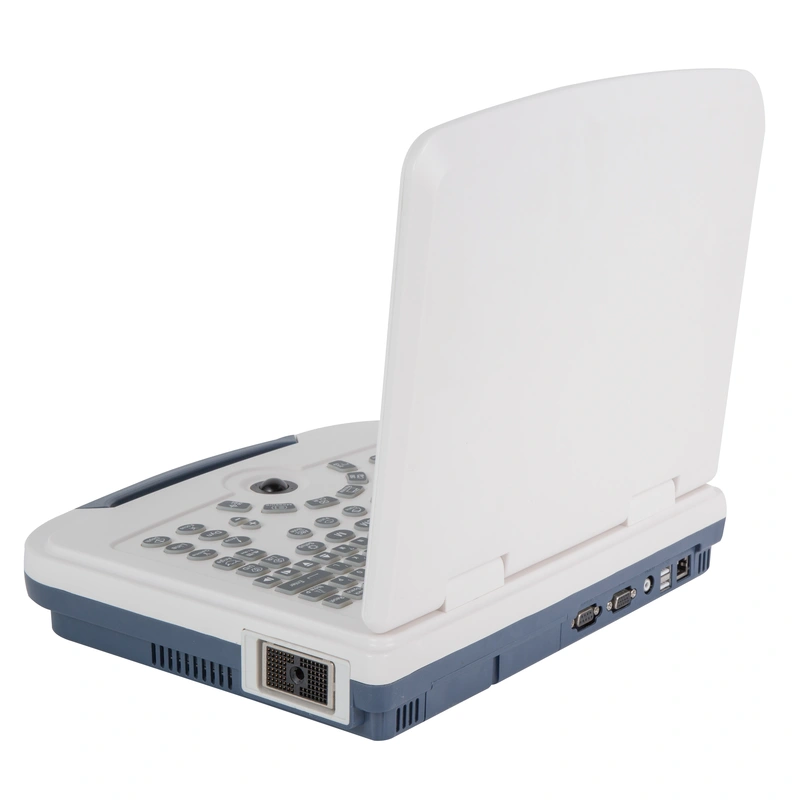

| Interfaces : | RS-232 、VGA 、VIDEO 、2 USB ports、DICOM |
| Display magnification: | 16 kinds of display modes. |
| Boot time: | ≤3 seconds |
| Built-in 8800mA lithium battery | |
| Net Weight | 4.7KG |
